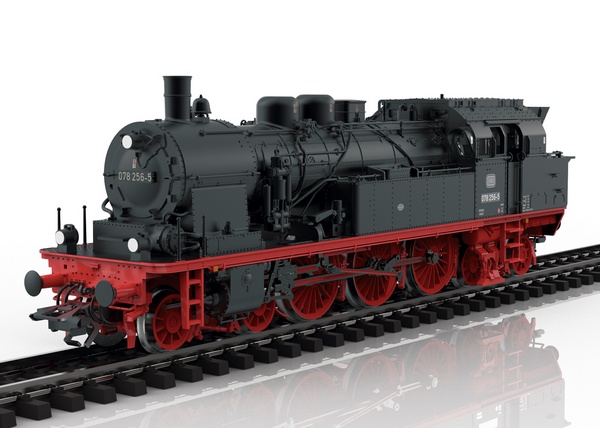

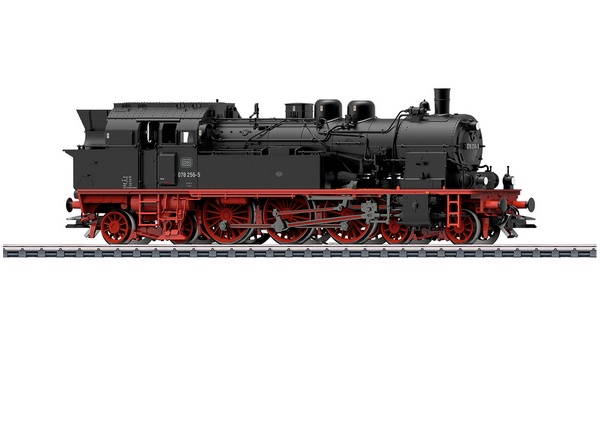

Marklin 39785 Class 078 Steam Locomotive
Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 3 axles powered. Traction tires. The locomotive is constructed mostly of metal. A 72270 smoke generator can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke generator contact will work in conventional operation and can be controlled digitally. Dual red marker lights can be controlled separately in digital operation. The cab lighting can be controlled digitally. Maintenance-free warm white and red LEDs are used for the lighting. The locomotive has numerous separately applied grab irons and piping. The minimum radius for operation is 360 mm / 14-3/16". Protective piston rod sleeves and brake hoses are included. Length over the buffers approximately 17 cm / 6-11/16".
Highlights:
-
Completely new tooling.
-
Especially intricate metal construction.
-
Many separately applied details.
-
Cab lighting can also be controlled digitally.
-
Marker lights can be controlled separately in digital operation.
-
A 72270 smoke generator can be installed.
-
An mfx+ digital decoder and a variety of operation and sound functions included.
Features:
-
Metal frame and mostly locomotive body.
-
mfx+ digital decoder
-
DCC decoder
-
Built-in sound effects circuit.
-
Triple headlights that change over with the direction of travel.
-
Dual red marker lights.
-
Marklin close couplers in standard pocket with guide mechanism.
-
Era 4
Warning: adults only
|
Control
Unit |
Mobile
Station |
Mobile
Station 2 |
Central
Station 1/2
|
Central Station 3/2*
Mobile Station 2** |
Headlight(s) |
· |
· |
· |
· |
· |
Smoke generator contact |
· |
· |
· |
· |
· |
Steam locomotive op. sounds |
· |
· |
· |
· |
· |
Locomotive whistle |
· |
· |
· |
· |
· |
Direct control |
· |
· |
· |
· |
· |
Engineer’s cab lighting |
|
· |
· |
· |
· |
Front Headlights off |
|
· |
· |
· |
· |
Bell |
|
· |
· |
· |
· |
Marker light(s) |
|
· |
· |
· |
· |
Sound of squealing brakes off |
|
|
· |
· |
· |
Sound of coal being shoveled |
|
|
· |
· |
· |
Conductor's Whistle |
|
|
· |
· |
· |
Letting off Steam |
|
|
· |
· |
· |
Switching maneuver |
|
|
· |
· |
· |
Whistle for switching maneuver |
|
|
· |
· |
· |
Air Pump |
|
|
|
|
· |
Water Pump |
|
|
|
|
· |
Injectors |
|
|
|
|
· |
Sanding |
|
|
|
|
· |
Safety Valve |
|
|
|
|
· |
Tipping grate |
|
|
|
|
· |
Generator Sounds |
|
|
|
|
· |
Replenishing fuel |
|
|
|
|
· |
Replenishing fuel |
|
|
|
|
· |
Replenishing fuel |
|
|
|
|
· |
