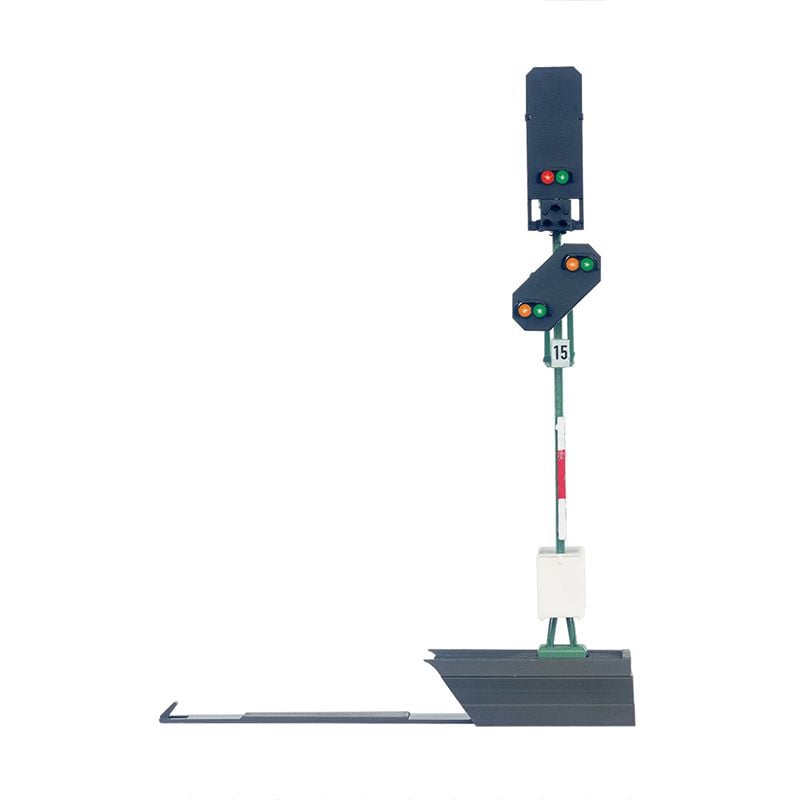

Marklin 76495 Color Light Home Signal
Model: The signal has an integrated electronic signal circuit and 1 separate signal decoder. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before the installation of the signal. Connections for controlling train movements and for 1 distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16".
Prototype: German Federal Railroad (DB) standard design exit signal. 4 settings: "Stop" - red/red (Hp00), "Proceed" - green (Hp1) and "Proceed Slowly" - green/yellow (Hp2,) as well as "Stop, Switching Permitted" - red/white/white (Hp0/Sh1).
Highlights:

• Exit signal for use in station areas.
• An appropriate distant signal by itself is item no. 76480 and 76481, or on entry signal, item no. 76497.
• Built-in yard signal with white light.
