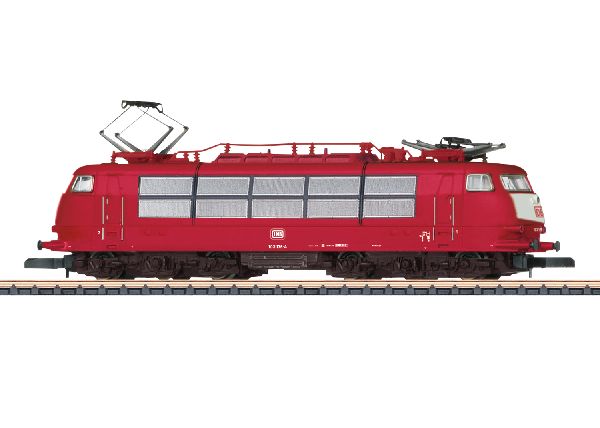

Marklin 88545 Class 103 1 Electric Locomotive
Model: The model has a locomotive body for the first time made of plastic impregnated with metal. The locomotive is finely and extensively painted and lettered. It is equipped with a motor with a bell-shaped armature. The skylights in the engine room have window inserts and the engine room is lit. Both trucks powered. The locomotive has a concealed switch for the working catenary operation. Length over the buffers 88 mm / 3-7/16".
The Class 103.1 At the start of the Sixties, the DB decided to expand the growing passenger train service with the development of a powerful locomotive. At the end of 1962, four test locomotives of the new class E 03 were ordered from Henschel (mechanical equipment) and Siemens-Schuckert (electrical equipment). These units were finished in time for the International Transportation Exhibition in 1965 in Munich. Starting in 1969 regular production of the class 103 was done for the InterCity service (IC 71) planned to begin in 1971, but with new specifications. The effective load for TEE and IC trains with speeds of 200 km/h / 125 mph increased from 300 to 480 metric tons, and 800 metric ton D-Zug express trains had to be able to run at 160 km/h / 100 mph. The 145 regular production locomotives – now designated as the class 103.1 – had a basic design that followed that of the prototypes with a bridge frame, locomotive body consisting of five segments, and three-axle trucks. The same end shape was taken from the pre-production locomotives. The most striking thing externally was the doubling of the ventilation openings by a second five-part row of vent grills in the lower half of the side walls. This was caused by a larger air intake due to the greater performance of the locomotive. With a main transformer adjusted for maximum performance (continuous tractive effort output of 6,250 kilovolt amps) and type WBM 368/17f lightweight traction motors with a continuous rating of 1,240 kilowatts the result was a full increase in performance of 25.3% compared to the prototypes – an impressive 7,440 kilowatts or 10,116 horsepower. The last thirty units (road numbers 103 216-245) were equipped with a frame lengthened by 700 mm / 27-1/2" with larger cabs in order to realize the increase in size of the cramped cabs requested urgently by locomotive engineers. In addition, a more powerful air conditioning unit that could control the supply of warm or cool fresh air independent of the outside temperature contributed to the well-being of the engineers. After being delivered in the years 1970 to 1974 the class 103.1 units immediately took over the new IC trains as well as the prestigious TEE trains that had now been partially integrated into the new IC network. The regular production locomotives ran in regular service until December of 2002, over thirty years of use in heavy, high-quality passenger train service running at the highest levels of performance. Several units remained on the roster for reserve and special service. Two units (road numbers 103 113 and 245) are still kept operational at the Munich maintenance facility by the DB Inc. for long distance service and they get a workout regularly.
Highlights:

• Locomotive body made of plastic impregnated with metal.
• New generation motor.
• Engine room skylights include window inserts and the engine room has warm white LED lighting.

Features:

• Metal frame and locomotive body.
• Triple headlights that change over with the direction of travel.
• Built-in interior lighting.
• Era 4

Warning: adults only
