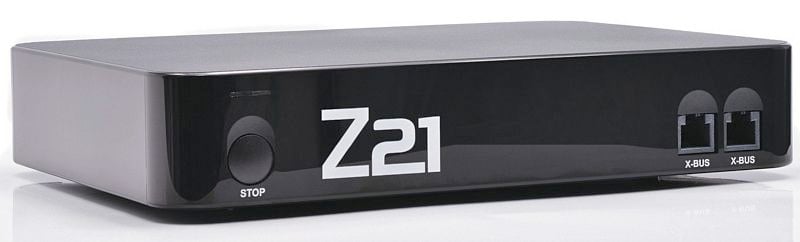

Roco 10822 Z21 Digital Control Center
Features:

• Intuitive operating concept for beginners and pros, control of the model railway locomotives through virtual, photorealistic drivers' cabs of different types of vehicles.
• You can also easily manage and administrate large train fleets
• Multi-protocol center for DCC and Motorola® formats
• Upgrade for existing digitally controlled layouts through backwards compatibility, i.e. MULTIMAUS, Lokmaus 2
• Switching of turnouts and soleonids
• RailCom compatible
• Software and sound of our ZIMO-Sound-Decoders can be updated at anytime
• Connection of Smartphone, Tablet-PC, WiFi MULTIMAUS, MULTIMAUS
• Plug & Play - connect and you are ready to go!
• Camera locomotives via Z21 app
• Integrated interface for connecting a PC
• You can easily connect to your Smartphone via pre-configurated WiFi router

Connections:

• 3 times X-Bus
• Main track for DCC and Motorola, 3 A, feedback enabled
• Separate programming track: for programming, decoder updating, sound programming. Feed back enabled.
• Booster-Bus for Roco Booster 10765, 10805, 10806, 10807, CDE-Booster uber 10789
• Roco-Feedback Bus for Roco Feedback module 10787
• LAN-Bus, pre-equipped CAN-Bus and LocoNet-Bus
• Sniffer Bus

Conntents of Delivery:

• Digital control center Z21
• Switching power supply 10851
• NEMA connector
• Pre-configured WiFi router for Plug and Play operations incl. switching power supply with NEMA connector
• Manual

Dimensions of Z21: 207 mm x 146 mm x 37 mm.
Dimensions of router: 174 mm x 144 mm x 30 mm.
