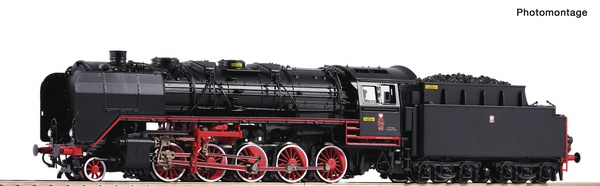

Roco 70670 Steam locomotive Ty4 40 PKP
Heavy goods train steam locomotive Ty4-40 of the Polish State Railways.
Drive on two axles of the tender and via cardan shaft on all five powered axles of the locomotive.
■ Wagner smoke deflectors
■ Hauls heavy goods trains on main lines
■ Metal wheels with delicately designed spokes
■ Smoke generator retroffitable
After the Second World War, many class 44 locomotives remained in Poland. They were re-designated Ty 4-1 to Ty 4-132 and served faithfully there, in some cases, until the end of the 1970s.
Epoch: III Gauge: H0 Elect. system: DC
|
General Data |
|
|
Coupling |
NEM shaft 362 with close coupling mechanism at the tender |
|
Minimum radius |
358 mm |
|
Flywheel |
yes
|
|
Scale |
294 |
|
Number of driven axles |
7 |
|
Number of axles with traction tyres
|
2 |
|
Electrical |
|
|
Smoke generator Article number (digital) |
Seuthe steam unit no. 11 |
|
Motor |
5-pole motor |
|
Smoke generator Article number (analog) |
Seuthe Nr. 10 |
|
Smoke generator retrofittable |
yes |
|
Head light
|
Both sides of the vehicle are equipped with direction dependent triple headlights. |
|
|
yes |
|
Control |
DC Analog |
|
Interface |
Electrical interface for traction units according to NEM 652 standards with plug-in fixture |
|
|
|
|
Measurements:
|
|
|
Length over buffer: |
260 mm |
