Tamiya 75026 Mini Motor Set

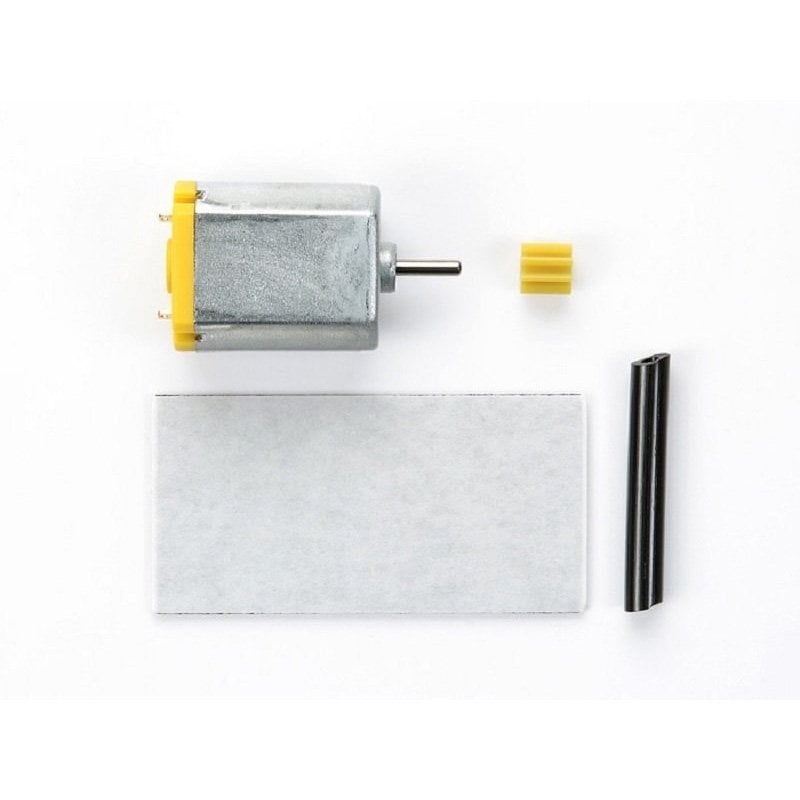

This compact motor has a maximum width of 15.5mm, length (including shaft) of 27mm, and a shaft diameter of 1.5mm, making it ideal for applications where size is a limitation. It can also serve as a spare motor for the Submarine Motor Mini. Set includes double-sided tape, rubber tube, and an 8T pinion gear.

About the Model

• Includes carbon brush and varistor
• Size: 18.7×15.5mm
• Weight: 11g
• Optimum Voltage: 3.0V
• Optimum Load: 0.59mN･m (6gf･cm)
• RPM at Optimum Voltage/Load: 8250r/min
• Current Consumption at Optimum Voltage/Load: 280mA

Warning: For adults only.
