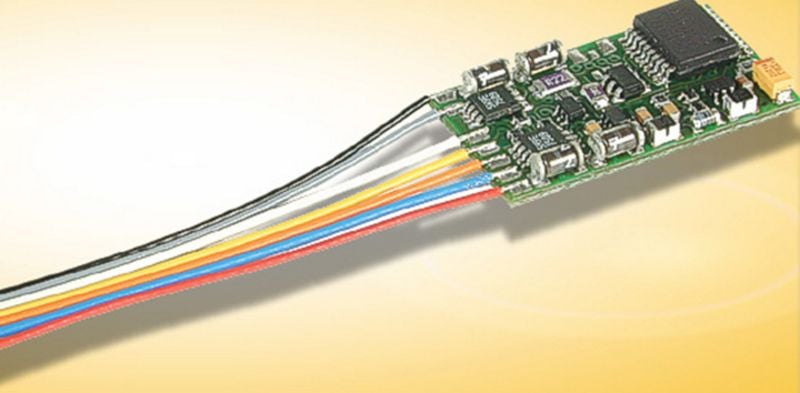

Viessmann 5244 HO Locomotive Decoder with Cable
Adjustable minimum and maximum speeds as well as an open programmable drive step schedule (28 steps), adjustable high frequency load also suitable for coreless-motor, with 14, 28 and 128 driving steps, plus switching way. Drive current 1A constantly, 1,8A max. 2 light outputs - dependent on direction with more functionalities: Function mapping (free programmable functional key allocation) dim, flash, timer function for coupler. The complete loading capacity of the functional outputs is to 500 mA, which can be arbitrarily distributed to the outputs. All exits are electrical overloading protected, in addition the decoder is overheating protected. The decoder is equipped with a SUSI interface as well as a connection for energy storage, on the soldering pads.
Category:
Locomotive Decoders
Dimensions approx:
25 x 15.4 x 3.3 mm
