Walkera TaliH500 QR GPS Hexa Drone with FPV
DEVO F12E Transmitter Features
- 12 channels, professional computer radio system
- 5" LCD screen 640 x 480P
- RC Control range around 1km @ 100mw power
- 5.8G video image receiver with 32 channels
- 4 stick modes
- RF transmitter power adjustable
- Supports Helicopter and Airplane (+Multirotor)
- Supports 15 models
- Supports Telemetry functions - GPS data, altitude, distance, voltage, temperature etc.
- Auto ID binding & Fixed ID
- USB online firmware updates
DEVO F12E Transmitter Specifications
- Encoder: 12-channel micro computer system
- Frequency: 2.4GHz DSSS
- Output power: ≤100mW
- Current drain: Close the video ≤300mA (100mW); view the video ≤430mA (100mW)
- Power supply: Li-Po 7.4V / 11.1V 1600 - 3000mAh or 5# battery 8*1.5V or NiMH 8*1.2V 1600 - 3000mAh
- Output pulse: 1000 - 2000us (1500us neutral)
- Radio distance: ≥1km
- 5.8Ghz video distance: 0.5 - 2km (up to transmitter)
- Image frequency: 32 points
- Frequency domain: 5645MHz - 5945MHz
- Stand-by time: 6 - 12 hours
TALI H500 GPS Drone Features
- One key to start
- Altitude hold mode
- Autorotation mode
- On key go home mode
- Hyper IOC mode
- Retractable undercarriage
- GPS telemetry function
- 5.8G real time image transmission
- The perfect on-stop FPV solution
- Pro level GoPro aerial platform
- Flight time up to 25 minutes
- Control all aspects of flight with the F12E 12CH FPV radio (FPV version)
- Pro level 3 axis brushless gimbal and iLook+ HD camera (FPV version)
- Real time OSD flight parameters display, video range reaches 1km (FPV version)
- Large 5 inches monitor with real time 5.8g video on screen data, real time telemetry monitoring of battery voltage, temperature and GPS data, ensures safe flight (FPV version)
- High resolution 13 megapixel stills, 1080P 30 fps video, high performance, low cost, built-in 5.8g video downlink (FPV version)
- G-3D brushless gimbal, easy to operate, stabilized camera platform, support GoPro and iLook series cameras (FPV version)

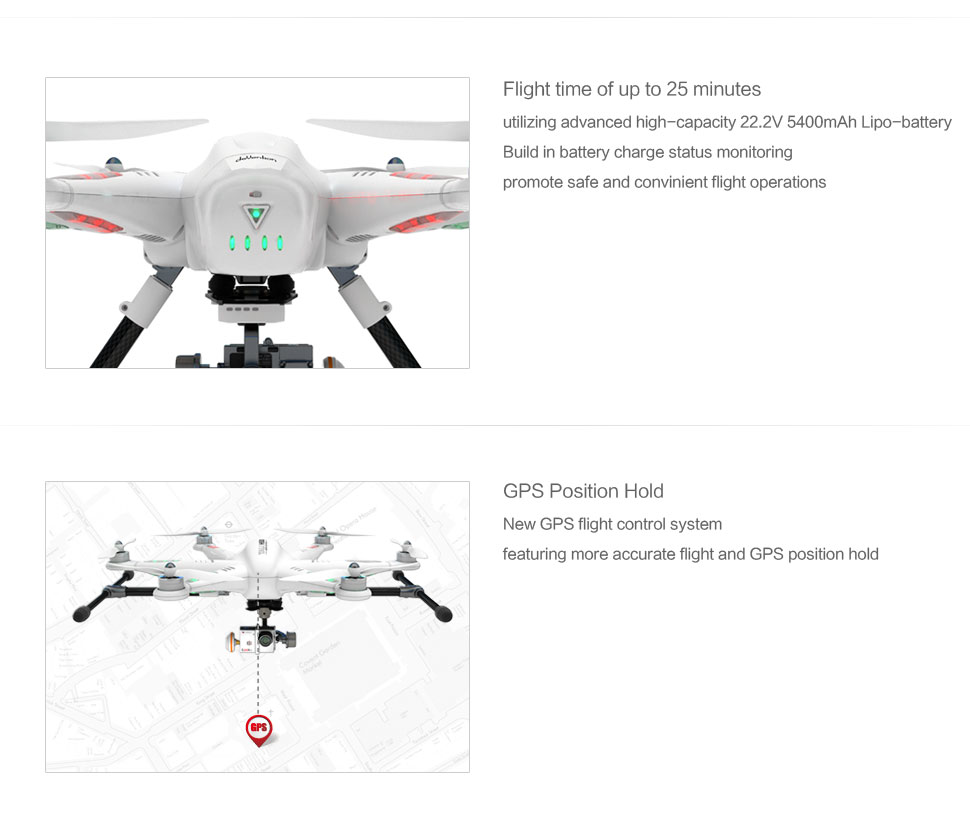

- Flight time up to 25 minutes, utilizing advanced high capacity 22.2V 5400mAh Li-Po battery, built-in battery charge status monitoring, promote safe and convenient flight operation
- GPS position hold, new GPS flight control system featuring more accurate flight and GPS position hold
- Hyper IOC function, with the new advanced Intelligent Orientation Control, the H500 can start and fly in any orientation completely solving pilot loss of orientation problem
- Object round flight, the H500 can fly circle base on a GPS waypoint
- One Key go home, support the One key go home function during flight
- Failsafe return to home, advanced RTH protects the aircraft, in case of loss of control signal, the H500 will automatically attempt to return to its starting position for a safe landing. Advanced GPS systems protect your investment
- Specialized aerial hexacopter
- Stabilized 6 axis FLCS: DEVO-H
- Portable battery plug design
- Professional retractable landing gear fulfill 360° full view video and photo shooting
TALI H500 GPS Drone Specifications
- Fight time : 20 - 25 minutes
- Battery : 22.2V 5400mah Li-Po battery
- FPV Channel : 5.8Ghz 12CH
- Monitor : 5" LCD monitor on the DEVO F12E Transmitter, with CBVS port, 640 x 480P
- iLook+ Camera : Record at HD 1920 x 1080P, transmit at 640 x 480P
- Video Frame Rate : 30 fps
- Video Format : MOV
- Video Compressing Format : H.264
- Video Range : 100~300m (depends on your environment)
- Main rotor dia.: 233mm
- Receiver : DEVO-RX705
- Brushless motor : WK-WS-34-001
- Brushless ESC : WST-15AH (R/G)
- Main controller : FCS-H500
- Take Off Weight : 2020g (Battery included)
- Dimension : 471 x 536 x 270mm
